Tobee® Paper Stock Pump

Tobee® TXL Paper Stock Pump is one kind centrifugal single stage single suction paper pulp and chemicals sewage,paper pulp pump .it is widely used in such as paper making industry ,water treatment industry ,sugar-making industry,starch industry,soda reuse industry .it can transport less than 6% concentration sewage water or fine slurrys from paper -making industry ,sugar -making and starch industry etc.,and it can also transport the non-abrasion medium in other industries.

Specification:
Size (discharge): 1" to16" Pump
Capacity: 30~ 2300 m3/hr
Head: 3m ~ 58 m
Handing solids: 0 ~ 650mm
Concentration: 0%~ 6%
Material:Cast iron,SS304,SS316L,Duplex stainless steel etc

Detailed specification:
1. High efficiency, Energy saving: operation efficiency is 3-10% higher than ordinary pulp pump, energy saving to 15-30%
2. Good NPSH, Long service: actual using life is twice-third time than ordinary pulp pump.
3. High concentrations, Non-clogging: transfer pulp concentration max to 6%.
4. Reasonable structure, Easy maintenance: Pump head is front, rear casing structure, when maintenance there is no need to remove pipe line, only remove the electric motor backwards, then could disassemble and repair the pump.

Tobee® TXL Paper Stock Pump Performance Parameter:

Category No. Model Performance parameter Suction
(m)		 Speed
n(r/min)		 Efficiency
(%)		 Matching motor Concentration
(%)		 Imp dia.
(mm)
Capacity
Q(m3/h)
Head
H(m)
A 1 80TXL-50-6 30-60 7-5 2.5 1420 68 Y100L1-2.2 4-6 156
B 1 80TXL-60-12 35-70 14-12 2.5 1440 62 Y112M-4 4-6 210
2 80TXL-65-15 40-80 16-14 2.5 1440 62 Y132S-5.5 4-6 225
C 1 80TXL-50-20 30-60 23-21 6 1440 60 Y132S-5.5 4-6 258
2 80TXL-55-25 35-70 26-24 6 1440 60 Y132M-7.5 4-6 285
D 1 80TXL-60-35 35-70 37-33 6 1460 60 Y160M-11 4-6 323
2 80TXL-70-40 40-80 41-37 6 1460 60 Y160L-15 4-6 340
3 80TXL-80-45 55-100 44-40 6 1460 60 Y180M-18.5 4-6 353
E 1 100TXL-90-18 55-110 19-17 6 1440 70 Y132M-7.5 4-6 242
2 100TXL-110-20 65-130 23-21 6 1460 72 Y160M-11 4-6 258
F 1 100TXL-80-20 50-100 21-19 6 1440 68 Y132M-7.5 4-6 258
2 100TXL-80-25 50-100 29-25 6 1460 68 Y160M-11 4-6 285
G 1 100TXL-70-30 40-80 32-28 6 1460 60 Y160M-11 4-6 293
2 100TXL-80-35 50-100 37-33 6 1460 60 Y160L-15 4-6 320
3 100TXL-90-40 55-110 43-37 6 1470 60 Y180M-18.5 4-6 340
H 1 100TXL-150-16 90-180 19-17 6 970 68 Y180L-15 4-6 258
2 100TXL-160-30 95-190 32-28 6 1470 68 Y180L-22 4-6 310
3 100TXL-180-35 110-220 37-32 6 1470 68 Y200L-30 4-6 330
4 100TXL-200-40 120-240 43-37 6 1480 68 Y225S-37 4-6 350
5 100TXL-130-11 80-160 12-9 6 970 65 Y160M-7.5 4-6 300
K 1 100TXL-100-22 60-120 23-21 6 970 60 Y160M-11 4-6 385
2 100TXL-130-45 80-160 49-43 6 1470 60 Y200L-30 4-6 365
3 100TXL-140-50 85-170 55-48 6 1480 60 Y225S-37 4-6 390
4 100TXL-200-55 120-240 58-51 6 1480 60 Y250M-55 4-6 399
M 1 150TXL-160-15 95-190 15-12 6 970 75 Y160L-11 4-6 320
2 150TXL-200-25 120-240 25.5-22.5 6 1470 75 Y180L-22 4-6 290
3 150TXL-220-30 130-260 32-28 6 1470 75 Y200L-30 4-6 310
4 150TXL-200-20 120-240 21.5-18.5 6 1470 75 Y180M-18.5 4-6 275
5 150TXL-300-25 180-360 26.5-23 6 1470 75 Y200L-30 4-6 310
N 1 150TXL-200-14 120-240 13-11 5 970 70 Y160L-11 4-6 318
2 150TXL-240-14 145-290 14-11 5 970 70 Y180L-15 4-6 323
3 150TXL-210-16 125-250 15-13 5 970 70 Y180L-15 4-6 340
4 150TXL-260-16 155-310 15-13 5 970 70 Y200L1-18.5 4-6 340
5 150TXL-300-30 180-360 29.5-26 5 1480 72 Y225S-37 4-6 318
6 150TXL-370-30 220-440 29.5-26 5 1480 72 Y225M-45 4-6 323
7 150TXL-320-35 190-380 36-32 5 1480 72 Y225M-45 4-6 340
8 150TXL-400-35 240-480 34-29 5 1480 72 Y250M-55 4-6 340
P 1 125TXL-130-38 80-160 40-35.5 6 1470 68 Y180L-22 4-6 340
2 125TXL-120-32 70-140 34-29 6 1470 68 Y180M-18.5 4-6 310
3 125TXL-90-17 55-110 18-15.5 6 970 68 Y160M-7.5 4-6 340
R 1 150TXL-300-15 180-360 16-14 5 970 75 Y200L1-18.5 4-6 350
2 150TXL-280-12 170-340 13-11 5 970 75 Y180L-15 4-6 315
3 150TXL-430-32 260-520 34-29 5 1480 75 Y250M-55 4-6 340
4 150TXL-400-28 240-480 30-25 5 1480 75 Y225M-45 4-6 315
5 150TXL-340-25 210-430 27-20 5 1480 75 Y225S-37 4-6 300
6 150TXL-360-36 215-430 39-32 5 1480 75 Y250M-55 4-6 350
Q 1 150TXL-370-14 220-440 15-13 5 970 77 Y200L2-22 4-6 350
2 150TXL-350-12 210-420 13-11 5 970 77 Y200L1-18.5 4-6 335
3 150TXL-570-34 340-680 35-30 5 1480 77 Y280S-75 4-6 350
4 150TXL-500-27 310-620 28-24 5 1480 77 Y250M-55 4-6 316
S 1 250TXL-800-25 480-960 26.5-23 5 1480 76 Y280M-90 4-6 330
2 250TXL-500-10 300-600 11-9 5 970 76 Y200L2-22 4-6 320
T 1 200TXL-500-43 300-600 44-40 5 1480 75 Y280M-90 4-6 384
2 200TXL-460-37 280-550 39-34 5 1480 72 Y280S-75 4-6 356
U 1 200TXL-600-14 360-720 15-12 5 1480 76 Y225S-37 4-6 260
2 200TXL-400-6 240-480 7-5 5 970 76 Y160L-11 4-6 260
V 1 200TXL-250-5 150-300 6-4 5 970 76 Y132M2-5.5 4-6 233
W 1 150TXL-130-5 80-160 6-4 5 970 76 Y132S-3 4-6 228
YA 1 250TXL-1000-32 700-1150 34-28 1.5 1480 75 Y315M-132 4-6 353
2 250TXL-935-28 655-1080 30-24 1.5 1480 75 Y315S-110 4-6 330
3 250TXL-660-14 460-760 15-10 1.5 980 75 Y280S-45 4-6 353
4 250TXL-620-12 435-715 13-8 1.5 980 75 Y250M-37 4-6 330
YB 1 250TXL-1000-50 700-1150 52-48 1.5 1480 78 Y355M1-220 4-6 426
2 250TXL-950-45 665-1100 47-42 1.5 1480 78 Y315L2-185 4-6 405
3 250TXL-900-40 630-1035 42-38 1.5 1480 78 Y315L1-160 4-6 384
4 250TXL-850-36 600-980 38-33 1.5 1480 78 Y315M-132 4-6 362
5 250TXL-660-22 460-760 24-20 1.5 980 78 Y315S-75 4-6 426
6 250TXL-630-20 440-730 21-17 1.5 980 78 Y280M-55 4-6 405
7 250TXL-600-18 420-690 19-15 1.5 980 78 Y280S-45 4-6 384
YC 1 300TXL-1300-32 910-1500 34-30 1.5 1480 78 Y315L2-185 4-6 370
2 300TXL-1200-29 840-1380 31-27 1.5 1480 78 Y315L1-160 4-6 350
3 300TXL-1150-26 800-1320 28-24 1.5 1480 78 Y315M-132 4-6 335
4 300TXL-860-14 600-990 15-12 1.5 980 78 Y280M-55 4-6 370
5 300TXL-820-13 575-940 14-11 1.5 980 78 Y280S-45 4-6 350
6 300TXL-780-11 545-900 12-9 1.5 980 78 Y250M-37 4-6 335
YD 1 300TXL-1300-50 910-1500 52-48 1.5 1480 76 Y355L1-280 4-6 424
2 300TXL-1200-42 840-1380 44-40 1.5 1480 76 Y355M1-220 4-6 400
3 300TXL-1100-36 770-1270 38-33 1.5 1480 76 Y315L1-185 4-6 370
4 300TXL-860-22 600-990 24-20 1.5 980 76 Y315M-90 4-6 424
5 300TXL-800-18 560-920 19-16 1.5 980 76 Y315S-74 4-6 400
6 300TXL-730-16 510-840 17-14 1.5 980 76 Y280M-55 4-6 370
YE 1 350TXL-1600-32 1120-1840 34-30 3.5 980 79 Y355L1-220 4-6 528
2 350TXL-1500-28 1050-1725 30-26 3.5 980 79 Y355M2-185 4-6 495
3 350TXL-1400-25 980-1610 27-23 3.5 980 79 Y355M1-160 4-6 467
4 350TXL-1200-18 840-1380 20-16 3.5 740 79 Y315L2-110 4-6 528
YF 1 400TXL-2000-32 1400-2300 34-30 2.5 980 80 JS2-400M3-280 4-6 538
2 400TXL-1840-27 1290-2110 29-25 2.5 980 80 Y355L1-220 4-6 495
3 400TXL-1740-24 1220-2000 26-22 2.5 980 80 Y355M2-185 4-6 466
4 400TXL-1510-18 1060-1740 20-16 2.5 740 80 Y355M2-132 4-6 538
YG 1 200TXL-500-70 300-600 73-66 5 1480 72 Y315L1-160 4-6 487
2 200TXL-460-60 276-552 62-56 5 1480 72 Y315M-132 4-6 450
3 200TXL-425-50 255-510 53-46 5 1480 70 Y315S-110 4-6 412

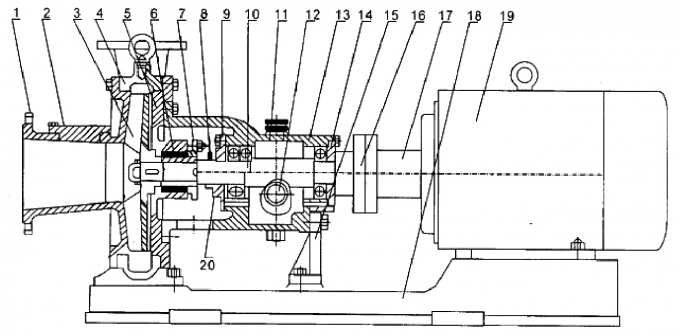

Tobee® TXL Paper Stock Pump Structural Drawing:

Tobee® Paper Stock Pump
1.Front pump cover 2.handhole cover 3.Impeller 4. Pump casing 5. Pump cover
6. Shaft cover 7. Packing gland 8. Slinger ring 9. Front bearing cover 10. Shaft
11. Breathable cover 12. Oil flag 13. Bearing frame 14. Back bearing cover 15. Support base
16. Coupling on pump end 17. Coupling for motor end 18.Base plate 19. Electric motor 20. Couplingguard

Tobee® TXL Paper Stock Pump Quality Control:

Stages of manufacture Quality cotrol activities
Raw material arrival Sampling, material chemical analysis
Casting and composition Material material chemical analysis of pump parts
Casting quality inspection
Key component machining Dimension precision inspection
Impeller balancing
General assembly Procedure operaion
Hydraulic static test
Performance test of pump unit Capacity and head
Vibration and noise
Bearing temperature
Final inspection Packaging of pump unit
Documents
Spare parts and accessories


















Tobee® TXL Paper Stock Pump After-sales Service:
As the pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.

Packing Transport Services
Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.
Installation Services
Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.
Technical Support Services
Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.

Tobee® TXL Paper Stock Pump On-Site Application:
Tobee® Paper Stock Pump
1. Paper-making industry: used to transport ≤6% pulp and the liquid loop transmission,
Lifting and pressure in alkali recovery industry.
2. Sugar industry: used to transport ≤4%, density ≤150mm2/s syrup.
3. Urban sewage industry:used in sewage treatment process of cycle conveying,
lifting and pressure, chemical raw materials.
4. Industry sewage, environmental protection project, municipal engineering.

Tobee® TXL Paper Stock Pump Spare parts:
Tobee® Paper Stock Pump

FAQ:
1.Q:Are you a factory or trading company?
A:We are a big manufacturing pump factory with 30 years experience.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is The material of your pumps?
A: The materials can be selected by High chrome alloy or Rubber,Polyurethane,Cast iron,SS304,SS316,CD4MCu,Duplex SS,Bronze etc. We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~20QC.
