Tobee 3/2 CAH Slurry Pumps for Mineral Processing Plant

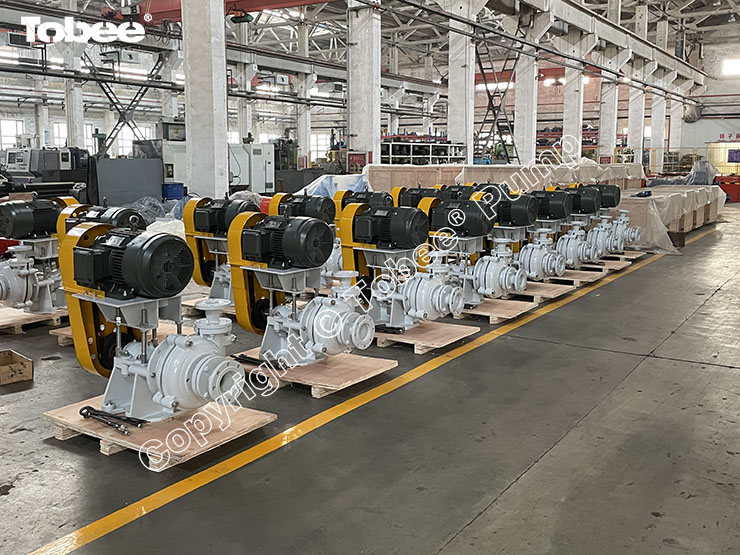

Tobee® 3/2 CAH Slurry Pump with CV Drive Arrangement and 11kw Electric motors are ready to mineral processing plant, The wet parts of the 3/2 AH slurry pumps are made from standard ultra chrome alloy A05A. the seal arrangement is gland water. Tobee AH heavy duty slurry pumps are end suction, split-case, centrifugal pumps and designed for heavy duty abrasive applications with large shaft diameter, heavy duty bearing assemblies and robust slurry pumping capacity. Tobee AH Slurry Pump is available in a wide range of sizes and models, with a variety of metal, rubber, polyurethane and ceramic wet parts options, an assortment of seal arrangements, and a standard impeller adjustment mechanism incorporated into every base or assembly. Tobee® 3/2C-AH Slurry Pump Performance Parameters: Model Max.Power (kw) Materials Clear water performance Impeller Vane No. Liner Impeller Capacity Q( m3/h) Head H( m) Speed n (rpm) Eff.η (%) NPSH (m) 3/2C AH 30 Metal Metal 39.6-86.4 12-64 1300-2700 55 4-6 5 Rubber Rubber 36-75.6 13-39 1300-2100 2-4 Tobee® 3/2C-AH Slurry Pump Delivery Photos:

Tobee® 3/2C-AH Slurry Pump Applications: Specialize in handling the toughest and most abrasive applications including mining, mineral processing, power generation, aggregate processing, and any other type of slurry pumping applications. Typical applications include: ·Mineral Processing ·Coal Preparation ·Cyclone Feeds ·Aggregate Processing ·Fine Primary Mill Grinding ·Process Chemical ·Tailings ·Industrial Processing ·FGD ·Pulp and Paper ·Food Processing ·Ash Handling ·Rod Mill Discharge ·SAG Mill Discharge Tobee® 3/2C-AH Slurry Pump Features & Benefits · WETTED PARTS IMPELLERS - Interchangeable metal and rubber impellers available. Pump out vanes on rear and front reduce recirculation within pump, which prevents seal contamination. LINERS - Interchangeable metal and rubber liners available. Easily replaceable liners are attached to casing by threaded bolts rather than unreliable glue. THROATBUSH - Interchangeable metal and rubber throat bush– adjustable via cotters to account for wear over time and increase efficiency. · SEALS - Tobee offers a wide variety of seal options to suit any process requirements. EXPELLER (CENTRIFUGAL SEAL) - Available with low flow water flush or zero flow (grease lubricated) options to provide exceptional sealing where water introduction to the seal is intolerable or limited STUFFING BOX - Gland sealing with packing and lantern ring MECHANICAL SEALS · BEARING ASSEMBLY - Large shaft diameters and reduced overhang in the wet end contribute to long life and reliability in the field. CASING - Split-case design allows for ease of access and maintenance on wet end parts .Cast ductile iron with exterior ribbing provides increased pressure ratings and reliable service over time. · BASE - A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
