Tobee® TWQ Submersible Sewage Pump
Tobee® TWQ Submersible Sewage Pump
is mainly used for municipal works, industrial buildings, hotels,
hospitals, civil air defence, mines etc. and it is also used to drain
off the sewage, waste water, rainwater and living water in cities
containing Solid grains and various long fabrics etc.
SPECIFICATIONS:
Capacity: 10-6000m3/h
Head: 5-62m
Speed: 980-2900r/min
Temperature Range: ≤80°C
Materials: Cast iron,SS304,SS316L,High chrome alloy etc
Capacity: 10-6000m3/h
Head: 5-62m
Speed: 980-2900r/min
Temperature Range: ≤80°C
Materials: Cast iron,SS304,SS316L,High chrome alloy etc
Design Features:
• Bearing - SKF of NTN bearing which with a reasonable configuration, it can extend the duration of the pump.
• Cooling - The buit-in cooling system can make pump normally work whether the motor is on or under the liquid surface.
• Motor - Using F class insulation, Max. working temperatures can up to 155 ℃, Protective grade is IP68 with the effective seal.
• Using Burgmann mechanical seal from Germany, two seals are in series with each other and individual work.
• Oil chamber - Oil can lubricate and cool the mechanical seal and preventing liquid penetrating into the motor.
• Impeller - With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency.
• Pump casing - Using the know-how of CAD/CAM to make it at max. efficiency and min wearability.
• Shaft - The pump is coaxial with the motor and the sealing device on the end of the shaft prevents against contacting with the medium to protect it from corrosion.
• Monitor system - Inside of the stator there are three inlaid series heat-control switches, which are in the state of "N.O." at the normal temperature and opened when the temperature on the stator gets to 125℃ .
• Float switch - The float switch will give a warning signal(the indicator lights), when leakage occurs on the mechanical seal on the motor side, the liquid goes into the switch room and reaches a certain height, to stop the pump. Serviceman should check the mechanical seal and replace it if necessary.
• Cooling - The buit-in cooling system can make pump normally work whether the motor is on or under the liquid surface.
• Motor - Using F class insulation, Max. working temperatures can up to 155 ℃, Protective grade is IP68 with the effective seal.
• Using Burgmann mechanical seal from Germany, two seals are in series with each other and individual work.
• Oil chamber - Oil can lubricate and cool the mechanical seal and preventing liquid penetrating into the motor.
• Impeller - With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency.
• Pump casing - Using the know-how of CAD/CAM to make it at max. efficiency and min wearability.
• Shaft - The pump is coaxial with the motor and the sealing device on the end of the shaft prevents against contacting with the medium to protect it from corrosion.
• Monitor system - Inside of the stator there are three inlaid series heat-control switches, which are in the state of "N.O." at the normal temperature and opened when the temperature on the stator gets to 125℃ .
• Float switch - The float switch will give a warning signal(the indicator lights), when leakage occurs on the mechanical seal on the motor side, the liquid goes into the switch room and reaches a certain height, to stop the pump. Serviceman should check the mechanical seal and replace it if necessary.
Tobee® TWQ Submersible Sewage Pumps Quick Selection Chart:
Tobee® TWQ Submersible Sewage Pumps Performance Parameters:
Model
|
Capacity Q
(m3/h)
|
Head H
(m)
|
Speed n
(r/min)
|
Motor Power P
(kw)
|
Eff. η
(%)
|
40TQW
|
8.4-14.4
|
14-16
|
2900
|
1.5
|
42-70
|
50TQW
|
7-50.4
|
8-36
|
1450-2900
|
0.75-7.5
|
46-62
|
65TQW
|
17.5-44.4
|
11-30.2
|
2900
|
2.2-4
|
39-72
|
80TQW
|
20.3-72
|
5.7-27.5
|
2900
|
2.2-7.5
|
51-75
|
100TQW
|
35-120
|
5.6-38.5
|
1450
|
4-15
|
46-80
|
150TQW
|
49-300
|
5.5-44.5
|
1450
|
5.5-37
|
58-82
|
200TQW
|
110-480
|
5.7-44.5
|
1450
|
11-75
|
63-83
|
250TQW
|
420-840
|
7-35
|
980-1450
|
30-90
|
63-84.5
|
300TQW
|
280-1140
|
6.7-27
|
980-1450
|
45-110
|
68-84.5
|
350TQW
|
700-1800
|
8-40
|
980
|
45-160
|
68-85
|
400TQW
|
1050-2640
|
12-33
|
980
|
132-160
|
71-85
|
500TQW
|
1400-3600
|
9-22.5
|
980
|
110-200
|
72-85
|
600TQW
|
2500-6000
|
8-25
|
590-740
|
110-315
|
65-78
|
Tobee® TWQ Submersible Sewage Pumps Structural Drawing:
Tobee® TWQ Submersible Sewage Pumps Structural Design:
Tobee® TWQ Submersible Sewage Pumps Applications:
• Sewage
|
• Waste water
|
• Effluent
|
• Rain water
|
• Domestic water
|
• Chemical waste water
|
• Fibres
|
• Floodwater
|
• Sewerage system
|
• Drainage
|
• Sludge
|
• Civil air defence
|
• Pharmaceuticals
|
• Fodder liquids
|
• Mining waste
|
• Construction
|
• Oil-field waste water
|
• Hydraulic engineering
|
• Municipal Engineering
|
• Other industries
|

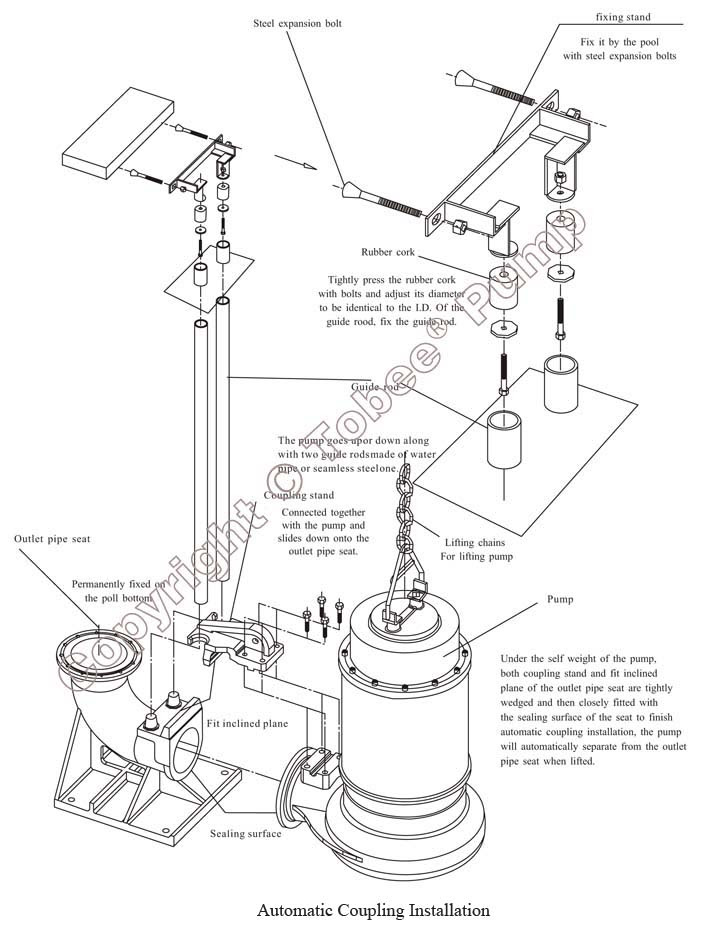

Tobee® TWQ Submersible Sewage Pumps Installations:
